IEC60884插头插座仪器设备

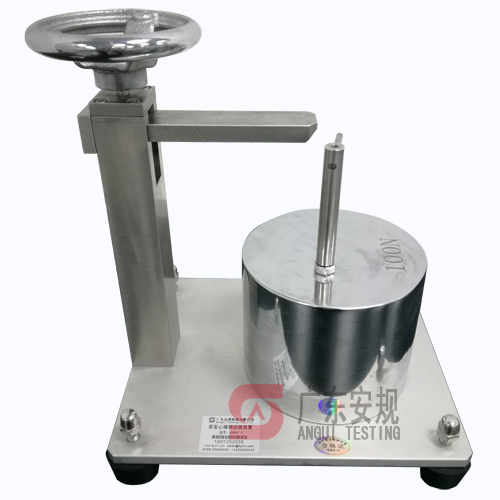

IEC60884 图14非实心插销试验装置

IEC60884 图14非实心插销试验装置
  • 型号 : AG884F14
  • 品牌 : 广东安规
  • 标准依据 : IEC60884-1第14.2节及图14
IEC60884 图14非实心插销试验装置是广东安规检测有限公司根据标准IEC60884-1第14.2节及图14要求设计制造而成。

详细描述

IEC60884 图14非实心插销试验装置是广东安规检测有限公司根据标准IEC60884-1第14.2节及图14要求设计制造而成。



IEC60884-1标准要求:

14.2 Pins of portable accessories shall have adequate mechanical strength.
Compliance is checked by the test of clause 24 and, for pins which are not solid, by the following test which is made after the test of clause 21.
A force of 100 N is exerted on the pin, which is supported as shown in figure 14, for 1 min in a direction perpendicular to the axis of the pin, by means of a steel rod having a diameter of 4,8 mm, the axis of which is also perpendicular to the axis of the pin.
During the application of the force, the reduction of the dimension of the pin at the point where the force is applied shall not exceed 0,15 mm.
After removal of the rod, the dimensions of the pin shall not have changed by more than 0,06 mm in any direction.



产品规格参数:

1、砝码:100N

2、加载圆棒直径:4.8mm

3、底板:氧化铝板

4、加载方式:螺纹升降
