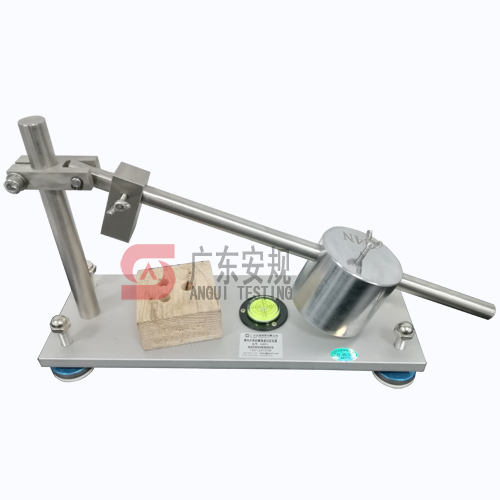

BS1363 英规弹性外壳机械强度试验装置

英规插头弹性外壳机械强度试验装置是根据标准BS1363-1 图2a及图2b制作而成。

标准要求：

9.3.1 Conformity shall be checked by the following test (an example of a suitable apparatus is shown in Figure 2).
The design of the apparatus shall be such that a steady force of 240−10 0 N can be applied to those places where the possibility of a failure exists, the force being
applied through a metal test pressure block as shown in Figure 2a). Each sample shall be subjected to the force at each chosen place in turn. During
each application of force, a test voltage of 2 000 V ±60 V 50 Hz of substantially sinusoidal waveform is applied for 60 0+5 s between all live parts bonded together and the metal test pressure block.During the test no flashover or breakdown shall occur.After the test it shall not be possible to touch live parts with test 11 of
BS EN 61032:1998 applied with a force of 30−2 0 N.

产品规格参数：

1、根据图2a要求，通过杠杆原理，经砝码调节在施力点提供230～240N压力

2、包含图2b实木块

3、不包含力值计数设备，可以根据客户需求定制带力学显示的设备

4、不含耐压施加仪器

5、不含推拉力试验指11
