IEC62368信息音视频设备

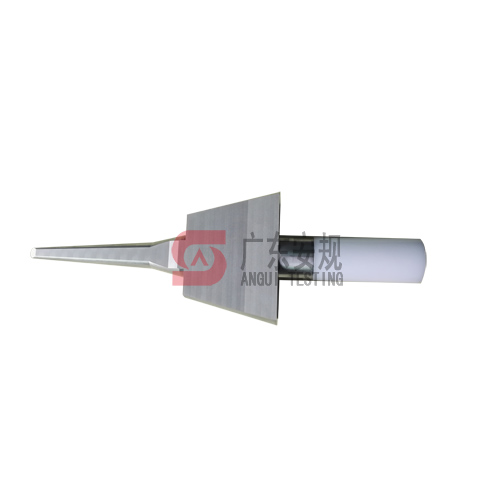

IEC62368 图V.1美规试验直指
-
- 型号 : AGPA100AS
- 品牌 : 广东安规
- 标准依据 : IEC61032-1第V.1.3 节方法2、T.3
IEC62368 美规试验直指是广东安规检测有限公司根据标准IEC61032-1第V.1.3 节方法2要求制作而成的。
详细描述
IEC62368 美规试验直指是广东安规检测有限公司根据标准IEC61032-1第V.1.3 节方法2要求制作而成的。
IEC62368-1标准要求：
V.1.3 Test method 2 – Openings tested with straight unjointed test probes
Openings preventing access to a part by the applicable jointed test probe of Figure V.1 or Figure V.2 are further tested by means of a straight unjointed version of the respective test probe applied with a force of 30 N. If the unjointed probe enters the openings, test method 1 is repeated, except that the applicable jointed version of the test probe is pushed through the opening using any necessary force up to 30 N.
T.3 Steady force test, 30 N
The test is conducted by means of the straight unjointed version of the applicable test probe of Figure V.1 or Figure V.2， applied with a force of 30 N ± 3 N for a short time duration of approximately 5 s.
V.1.3 试验方法2——用直的非铰接式试具试验开孔
对能阻止图V.1或图V.2的适用的铰接式试具接触零部件的开孔要再用直的非铰接式的相关试验试具，施加30N的力来进行试验。如果非铰接式试具进入开孔，则要重复进行试验方法1的试验，但要使用任何所需要的不大于30N的力，将相关的铰接式试验试具推入开孔。
