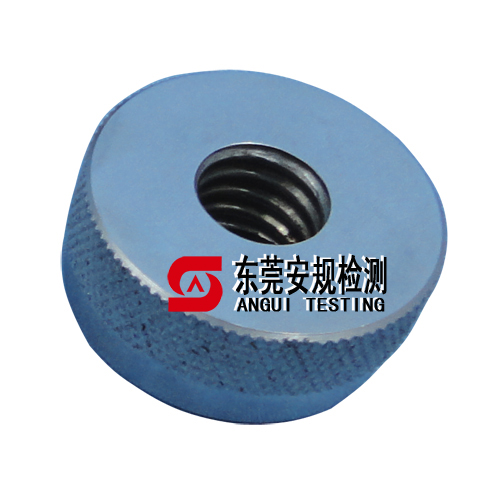

E14灯头通规  7006-27F-1

Go gauge for E14 caps on finished lamps 7006-27F-1

量规螺纹边缘尖锐部分应以0.2mm~0.3mm的半径倒圆。

The sharp part of the thread shall be broken with a radius of 0.2 mm to 0.3 mm.

目的：

Purpose:

检验成品灯上E14灯头螺纹最大尺寸和尺寸T1 min.

 To check the maximum dimensions of the screw thread and dimension T1 minimum of E14 caps on finished lamps.

检验：

Testing:

当成品灯上的灯头完全旋入量规内时，灯头中心触点应与X面共面或凸出X面。

When the cap on a finished lamp has been screwed into the gauge as far as it will go, the centre contact shall be co-planar with, or project

beyond surface X.

E14灯头量规包含以下产品：
