E14灯头焊锡高度规|7006-27G-1|E14灯头量规|灯头量规

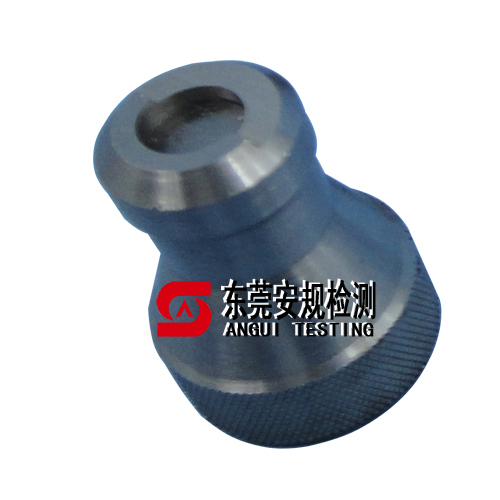

E14灯头焊锡高度规，又名S1通规  7006-27G-1

Go gauge for dimension S1 of E14 caps  7006-27G-1

目的：

PURPOSE:

检验成品灯上E14灯头尺寸S1的最大值和最小值。

To check the deminsion S1 minimum and S1 maxiimum of E14 caps on finished lamps.

检验：

TESTING:

当成品灯的灯头完全插入量规时，柱塞的W面应与X面共面或凸出X面，但不应凸出Y面。

When the cap on a finished lamp has been pushed into the gauge as far as it will go, the plunger surface W shall be co-planar with or project byond surface X but it shall not project beyond surface Y.

E14灯头量规包含以下产品：
