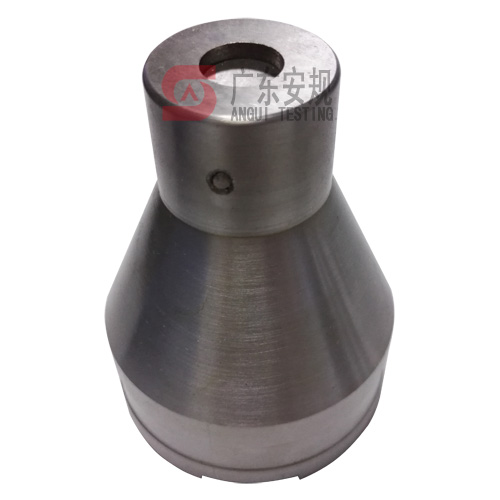

检验装有E26，E26/50×39，E26/51×39或E26d（无裙边）灯头接触性能规|7006-29-3|E26灯头量规|灯头量规

E26,E26/50x39,E26/51x39或E26d(无裙边）灯头的灯及其接触性能的量规——分美规和日规

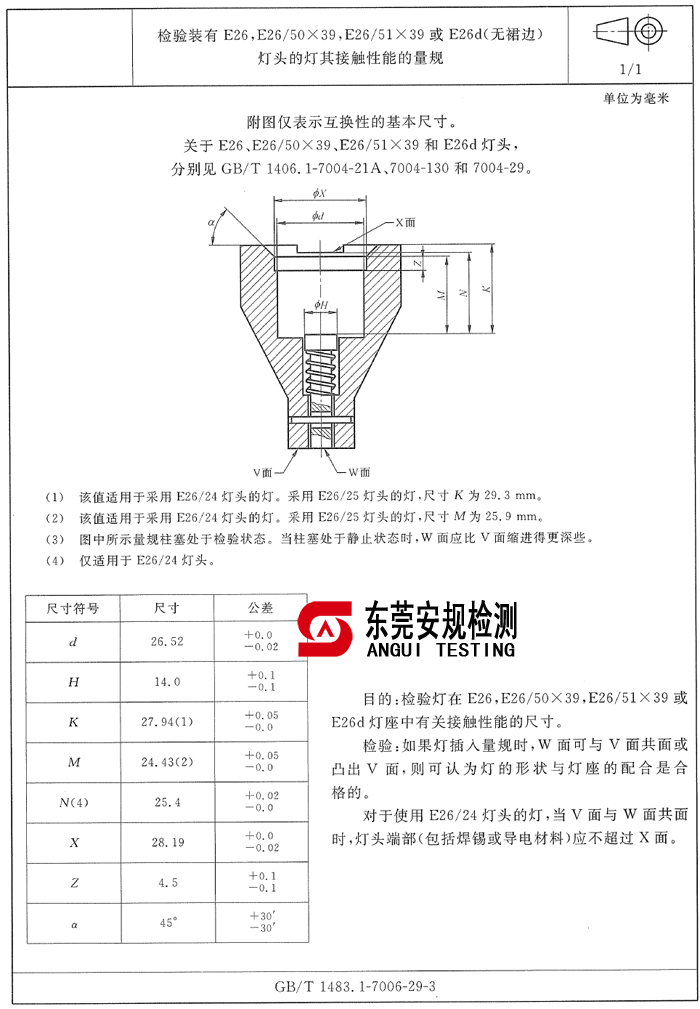

GAUGE FOR TESTING CONTACT-MAKING OF LAMPS FITTED WITH CAPS E26, E26/50x39,E26/51x39 Page 1/1 & E26d (NON-SKIRTED)

目的：

PURPOSE:

检验灯在E26灯座中有关接触性能的尺寸。

To check lamp dimensions for contact-making in E26, E26/50x39, E26/51x39 or E26d lampholders.

检测：

TESTING:

如果灯插入量规时，W面可与V面共面或凸出V面，则可认为灯的形状与灯座的配合是合格的。

The shape of the lamp with regard to the fit in the lampholder is assumed to be correct, if the lamp can be pushed into the gauge until plane W reaches plane V or projects beyond it.


对于E26/E24灯头的灯，当V面与W面共面时，灯头端部（包括焊锡或导电材料）应不超过X面。

For E26/E24 capped lamps, when surfaces V and W are coincident, the top of the cap including any solder or conductive material, shall not extend above surface X.

整套E26灯头量规包含以下产品

E26d灯头量规包括以下量规：
