E40成品灯接触性能规|7006-52-1|E40灯头量规|灯头量规

E40成品灯接触性能规|7006-52-1

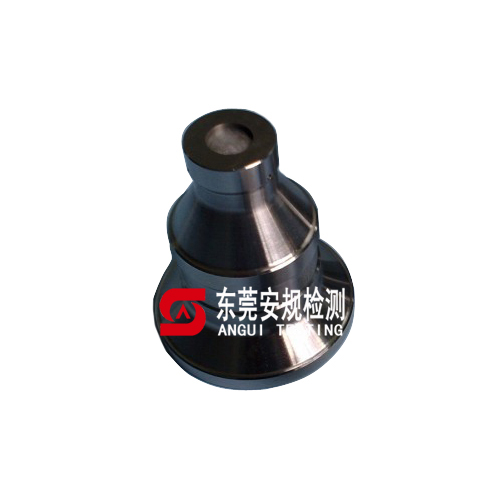

Gauge for Finished Lamp Fitted With E40 Caps for Testing Contact Making|7006-52-1

图中所示量规处于检验状态。当静止状态时，柱塞应在V面以上。

The gauge is shown in the test position. In the rest position the plunger shall be above plane V.

目的：

Porpose:

检验灯在灯座中有关接触性能的尺寸。

To check lamp dimensions for contact making in IEC holders.

检验：

Testing:

如果灯插入量规时，W面可与V面共面或凸出V面，则可认为灯的形状与灯座的配合是合格的。

The shape of the lamp with regard to the fit in the lampholder is assumed to be correct, if the lamp can be pushed into the gauge till plane W reaches plane V or projects beyond it.

E40灯头量规一套包含以下四种量规：
