E40灯头防意外接触规|7006-53-1|E40灯头量规|灯头量规

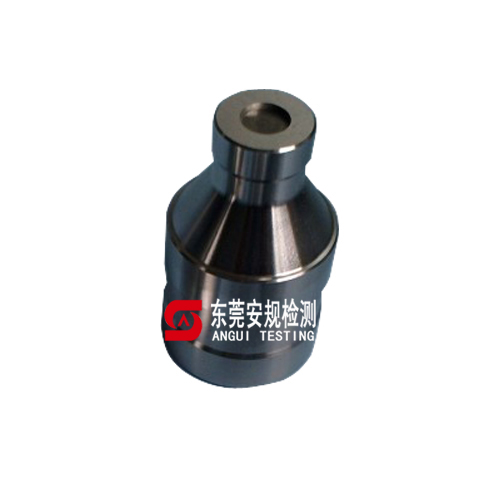

E40防意外接触规 7006-53-1

Gauge for Finished Lamps Fitted with E40 Caps for Testing Protection Against Accidental Contact 7006-53-1

图中所示量规处于检验状态。当静止状态时，柱塞应凸出V面。

The gauge is shown in the test position. In the rest position the plunger shall be above plane V.

目的：

Purpose:

检验防意外接触性能。

To check protection against accidental contact.

检验：

Testing:

如果灯完全插入量规时，W面没有凸出V面，则可认为灯的形状对于防意外接触性能是合格的。

The shape of the lamp with regard to protection against accidental contact is assumed to be correct if the test sample being pushed as far as possible into the gauge, plane W does not protrude beyond plane V.

E40灯头量规一套包含以下四种量规：
