E14灯头接触性能规|7006-54-2|E14灯头量规|灯头量规

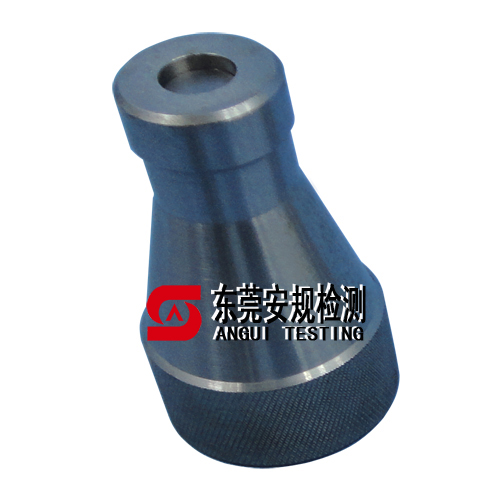

E14灯头接触性能规 7006-54-2

Gauge for finished lamp fitted with E14 caps for testing contact making:7006-54-2

目的：

PURPOSE:

检验灯座相关灯座中接触性能的尺寸。

To check lamp dimensions for contact making in IEC holders.

检验：

TESTING:

如果灯插入量规时，W面可以与V面共面或凸出V面，则可以认为灯的形状与灯座配合是合格的。 此量规仅适用检验装有GB/T1406.1 7004-23中所示的E14灯头的烛形灯、球形灯、家用管形灯和小形灯。

The shape of the lamp with regard to the fit in the lampholder is assumed to be correct if the lamp can be pushed into the gauge till plane W reaches plane V or projcts beyond it.

E14灯头量规包含以下产品：
