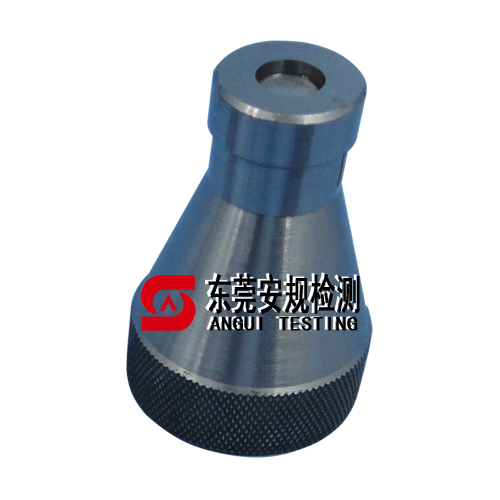

E14灯头防意外接触规|7006-55-2|E14灯头量规|灯头量规

E14防意外接触规 7006-55-2  GB/T1483.1

Gauge for finished lamps fitted with E14 caps for testing protection against accidental contact 7006-55-2 IEC60061-3

目的：

PURPOSE:

检验防意外接触性能。

To check protection against accidental contact.

检验：

TESTING:

当成品灯上灯头完全插入量规时，W面没凸出V面，则可以认为灯防意外接触性能上合格的。

The shape of the lamp with regard to protection against accidental contact is assumed to be correct if the test sample being pushed as far as possible into the gauge, plane W does not protrude beyond plane V.

此量规仅适用检验装有符合GB/T1406.1 7004-23中所示的E14灯头的烛形灯球形灯、家用管形灯和小型灯。

The application of this gauge is restricted to the following lamps when they are fitted with E14 caps, in accordance with sheet 7004-23: Candle lamps, Round bulb lamps, Domestic tubular lamps, Pygmy lamps.

E14灯头量规包含以下产品：
