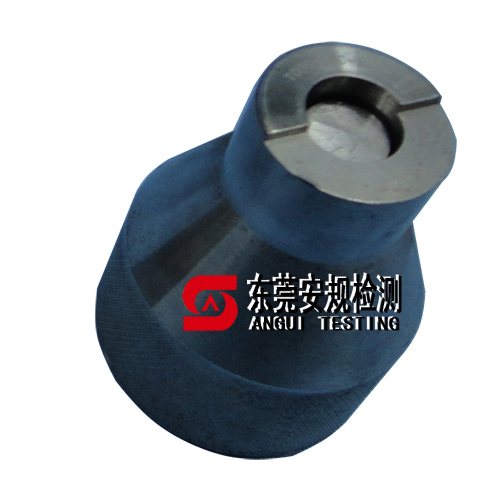

E27灯头焊锡高度规规|7006-27C-1|E27灯头量规|灯头量规

E27灯头焊锡高度规又名E27灯头尺寸S1通规

Go Gauge for Dimension S1 of E27 Caps on Finished lamps

目的：

PURPOSE:

检验GB/T1406.1 7004-21成品灯E27灯头尺寸S1 max和S1 min.

To check the dimension S1 minmum and S1 maximum of E27 caps of finished lamps shown on sheet 7004-21.

检验：

TESTING:

当成品等的灯头完全插入量规时，柱塞的W面应与X面共面或凸出X面，但不应凸出Y面。

When the cap on a finished lamp has been pushed into the gauge as far as it will go, the plunger surface W shall be co-planar with or project beyond surface Y.

E27灯头量规一套包含以下六种量规：
