E27灯头防意外接触规|7006-51-2|E27灯头量规|灯头量规

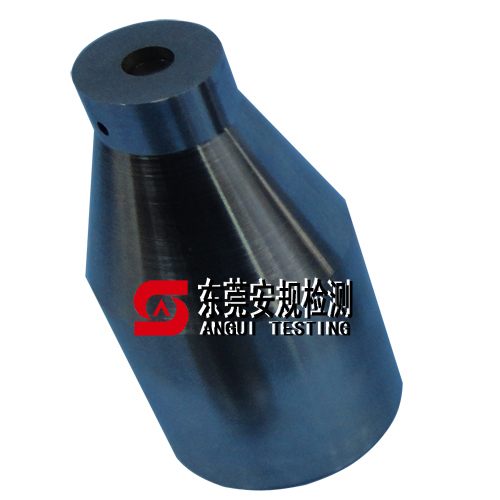

E27灯头防意外接触规  7006-51-2

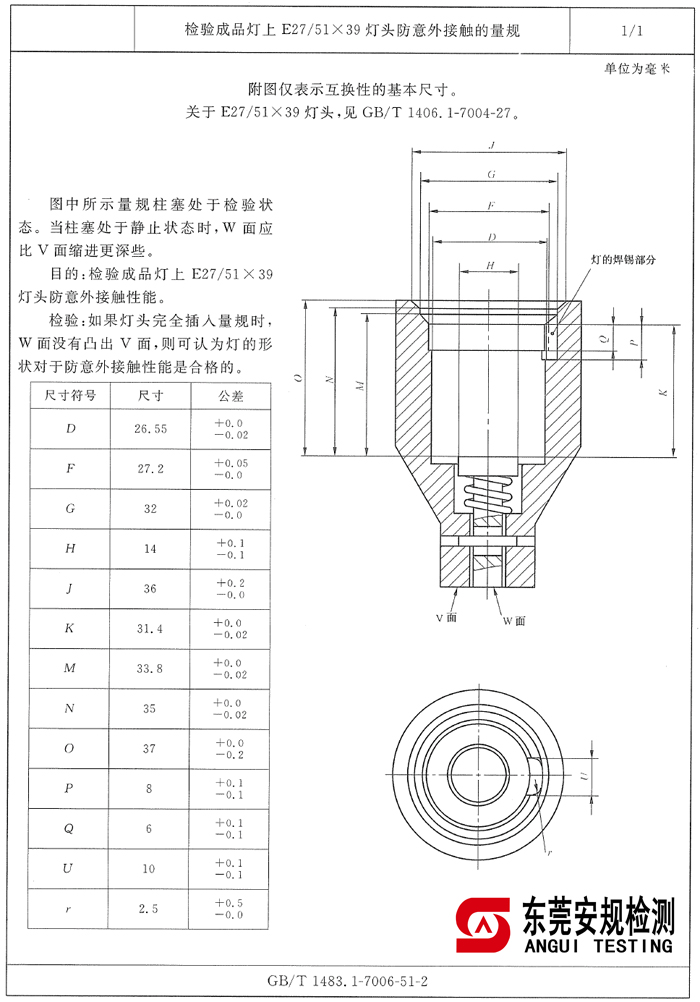

Gauge for caps on finished lamps for testing protection against accidental contact E27/51x39

目的：

PURPOSE:

检验成品灯上E27/51X39灯头防止意外接触性能。

To check protection against accidental contact of caps E27/51/39 on finished lamps.

检验：

TESTING:

如果灯头完全插入量规时，W面没有凸出V面，则可以认为灯的形状对于防意外接触性能是合格的。

The shape of the cap with regard to protection against accidental contact is assumed to be correct if, when the cap is pushed as far as possible into the gauge, surface W does not protrude beyond surface V.

E27灯头量规一套包含以下六种量规：
