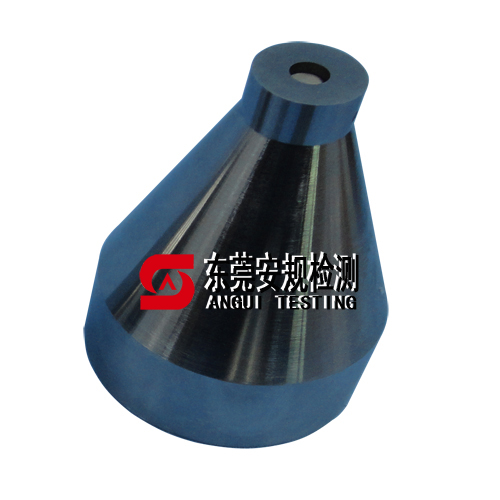

E27灯头接触性能量规 7006-50-1

Gauge for Finished Lamps Fitted with E27 Caps for Testig Contact Making 7006-50-1

目的：

PURPOSE:

检验灯在有关灯座中接触性能的尺寸。

To check lamp dimensions for contact making in IEC holders.

检验：

TESTING:

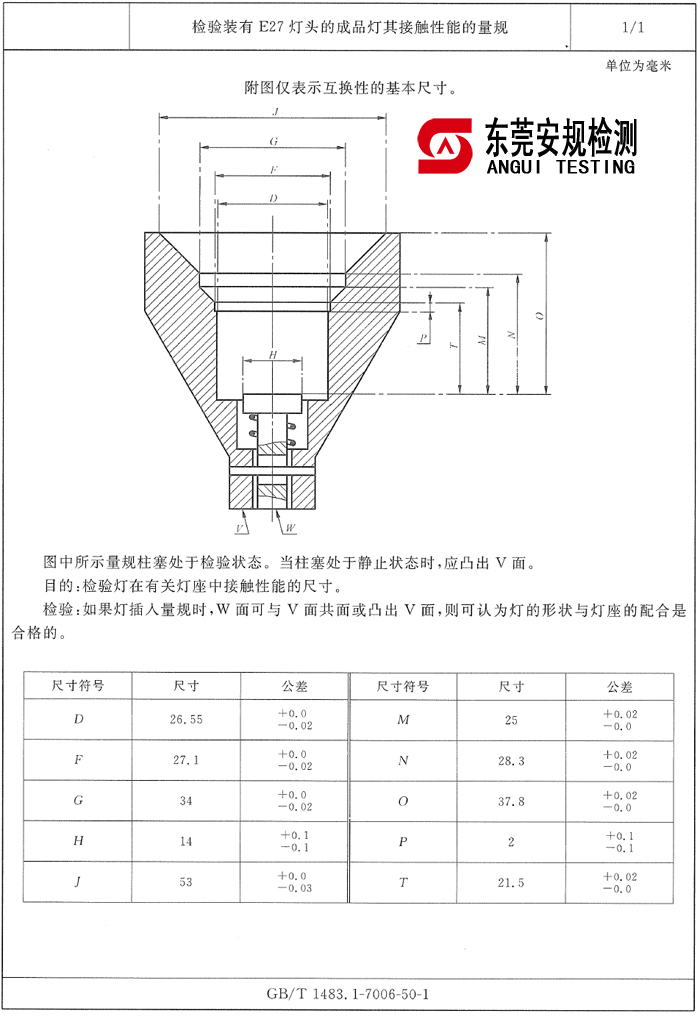

如果灯插入量规时，W面可与V面共面或凸出V面，则可认为灯的形状与灯座的配合是合格的。

The shape of the lamp with regard to the fit in the lampholder is assumed to be correct, if the lamp can be pushed into the gauge till plane W reaches plane V or projects beyond it.

E27灯头量规一套包含以下六种量规：
