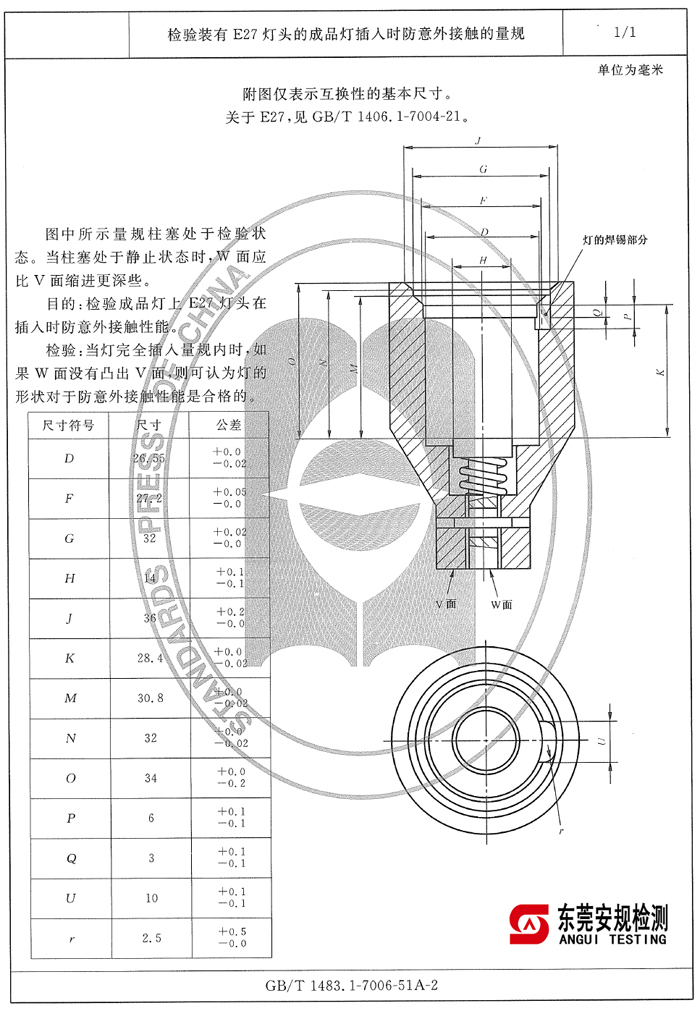

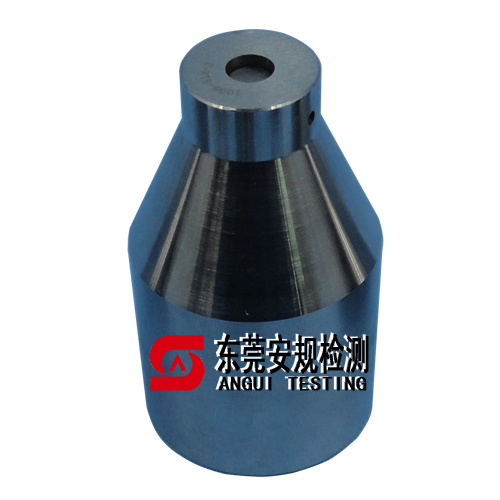

E27灯头成品灯插入防意外接触规 7006-51A-2

Gauge for caps on finished lamps for testing protection against accidental contact during insertion for E27 7006-51A-2

目的：

PURPOSE:

检验成品灯上E27灯头在插入时防意外接触性能。

To check protection against accidental contact during insertion of caps E27 on finished lamps.

检验：

TESTING:

当灯完全插入量规内时，如果W面没有凸出V面，则可认为灯的形状对于防意外接触性能上合格的。

The shape of the lamp with regard to protection against accidental contact is assumed to be corret if, when the lamp is pushed as far as possible into the gauge, surface W does not protrude beyond surface V.

E27灯头量规一套包含以下六种量规：
